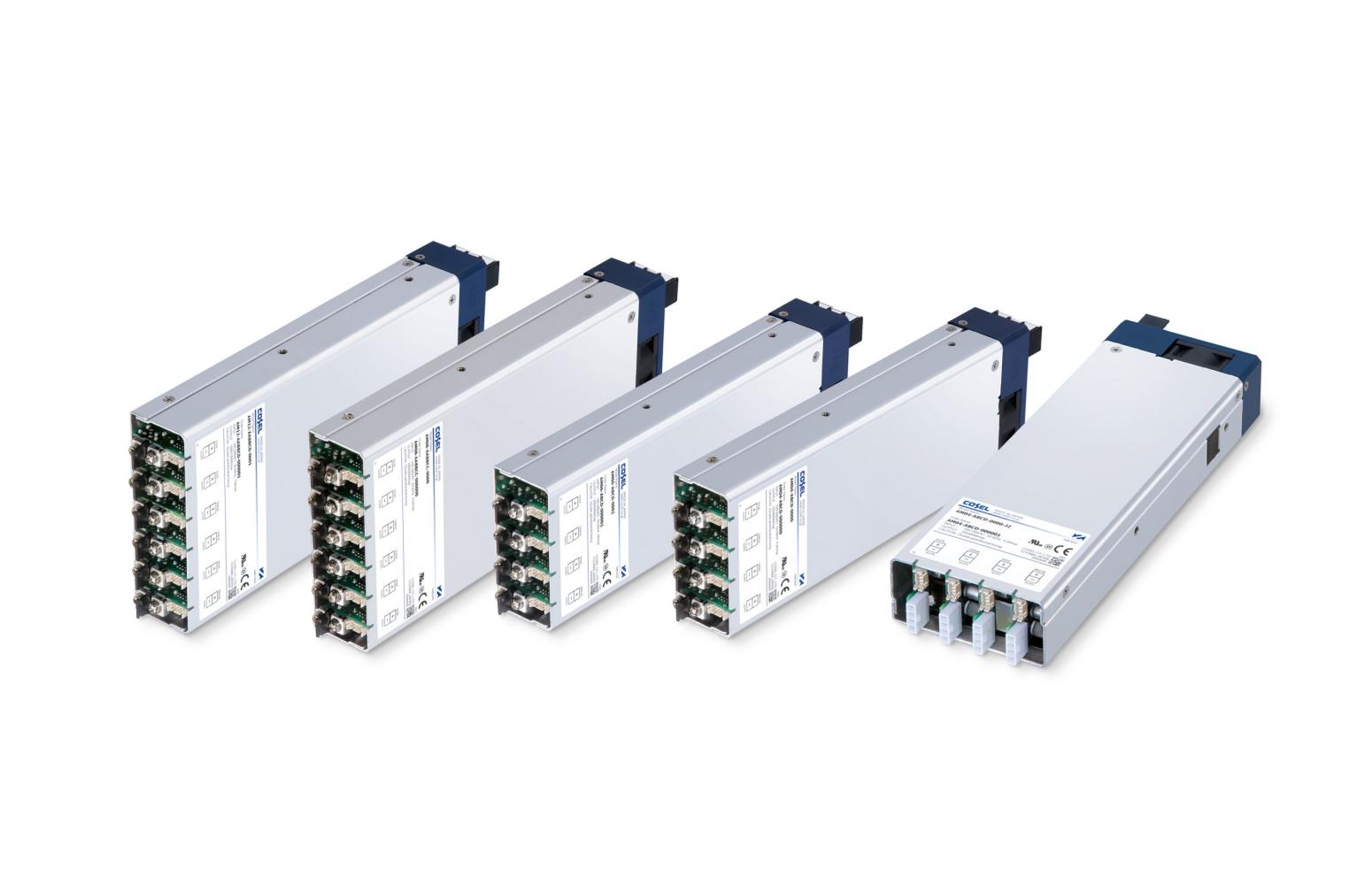

COSEL AME Series - Configurable AC/DC Power Supply for Industrial and Medical Applications
400 W to 1,200 W with Freely Configurable Output Voltages in a Sub-1U Format
Systems requiring multiple independently regulated DC output voltages from a single AC input traditionally face a difficult choice: use a multi-output fixed power supply and accept the constraints of preset voltage combinations, or build separate single-output supplies for each rail and accept the added space, complexity, and cost.
The COSEL AME Series takes a different approach. It is a configurable AC/DC power supply platform in which output voltages are selected from a broad menu of options and assembled into a modular slot architecture - giving system designers the flexibility of a tailored multi-output supply combined with the reliability, certifications, and long-term availability of a proven COSEL platform. FORTEC Switzerland offers the AME Series as part of its COSEL power supply portfolio and supports customers from initial configuration through to series procurement.
Designed for Industrial, Medical, Infrastructure, and Communications Applications
The AME Series is suited for deployment across a range of demanding multi-output power applications, including:
- Medical equipment requiring multiple regulated supply rails with MOPP isolation and low leakage current
- Industrial automation and process control systems
- Communications and telecommunications infrastructure
- Energy systems and renewable energy installations
- Infrastructure and distributed power architectures
Configurable Output Architecture
The AME Series uses a modular slot system that allows output voltages to be selected and combined within the available power budget:
- 4-slot configuration on 400 W and 600 W models
- 6-slot configuration on 800 W and 1,200 W models
- Available output voltages per slot: 3.3 V, 5 V, 7.5 V, 12 V, 15 V, 24 V, 36 V, 48 V, 65 V, 75 V, and 100 V single outputs; 12 V/12 V, 15 V/15 V, and 24 V/24 V dual-output modules also available
This configurability allows a single AME platform to replace multiple fixed-voltage power supplies within one enclosure, reducing cabinet space, simplifying wiring, and providing a single point of input conditioning and protection for the entire system power architecture.
Technical Characteristics
The AME Series delivers a consistent set of high-specification features across all four power levels:
- Universal AC input range of 85-264 V AC (single-phase) covering all global grid voltages
- Output power levels: 400 W (4 slots), 600 W (4 slots), 800 W (6 slots), 1,200 W (6 slots)
- Industrial and medical dual approval with 2× MOPP isolation for patient-contact applications
- Leakage current below 0.5 mA for medical-grade installation compliance
- Constant current capability for battery charging and current-limited load requirements
- Output voltage adjustable to 0 V for maximum system-level power management flexibility
- Parallel operation for scalable total system power
- PMBus digital communication and monitoring on 240 W output modules
- Remote On/Off for system-level power sequencing
- Alarm output for fault indication and monitoring integration
- Sub-1U profile for space-efficient 19-inch rack integration
- EN and UL safety approvals
- 5-year manufacturer warranty
A Platform That Adapts to the System - Not the Other Way Around
The defining advantage of the AME Series over fixed multi-output power supplies is that the output configuration is determined by the application, not by what is available off the shelf. For system designers who need voltage combinations not covered by standard fixed-output models - or who need to serve multiple product variants with different rail requirements from the same platform - the AME configurator allows the right combination to be specified precisely.
For medical applications in particular, the combination of configurable outputs, 2× MOPP isolation, sub-0.5 mA leakage current, and EN/UL dual approval reduces the number of separate certified power components required within the system, simplifying both the design and the overall approval process.
FORTEC Switzerland supports you in selecting and configuring the right AME Series solution for your application – from initial output configuration through to project-specific procurement and long-term series supply.
