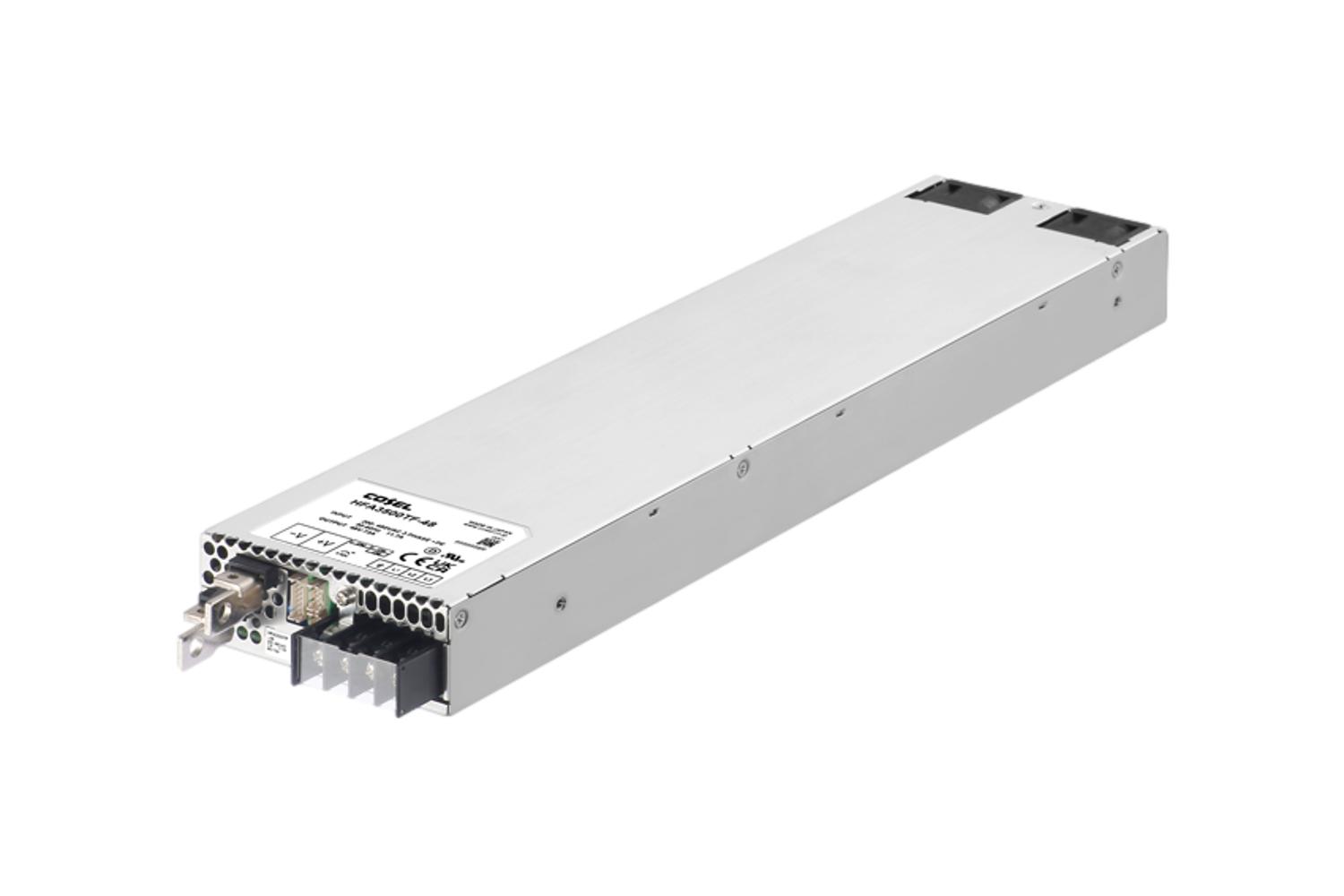

COSEL HFA Series - 3,500 W Three-Phase AC/DC Power Supply in 1U Rack Format
High Power, Low Profile: 3.5 kW from a Three-Phase Supply in a Single Rack Unit
Industrial systems requiring kilowatt-level DC power from a three-phase AC supply face a consistent set of integration challenges: the power supply must fit within standard rack infrastructure, operate reliably over a wide input voltage range, and support the parallel and redundancy configurations that high-availability systems demand.
The COSEL HFA Series – specifically the HFA3500TF model – addresses all of these requirements within a single 1U rack-mounted enclosure. Delivering 3,500 W of regulated DC output from a three-phase input range of 180-528 V AC, it combines exceptional power density with a comprehensive feature set for demanding industrial, semiconductor, and infrastructure applications.
3,500 W in a 41 mm High, 19-Inch Rack Package
The HFA3500TF measures just 110 mm × 41 mm × 468 mm, occupying less than a single 1U slot in a standard 19-inch rack. At 3,500 W continuous output, this represents a significant power density achievement for a convection-plus-fan cooled, fully enclosed rack-mount power supply.
The three-phase full-range AC input of 180–528 V AC covers the complete spectrum of international three-phase grid voltages – from 200 V systems in Asia and the Americas to 400 V European installations and high-voltage 480 V industrial supplies - without any input switching or reconfiguration.
Wide Output Voltage Range for Diverse Load Requirements
The HFA3500TF is available in six output voltage configurations, allowing the same platform to serve a broad range of load requirements:
- 48 V / 73 A (3,504 W)
- 65 V / 54 A (3,510 W)
- 90 V / 39 A (3,510 W)
- 130 V / 27 A (3,510 W)
- 200 V / 17.5 A (3,500 W)
- 300 V / 11.7 A (3,510 W)
Output voltage is adjustable within each model's specified trim range, and a built-in 12 V / 1 A auxiliary output provides a dedicated supply for control and monitoring circuits without requiring a separate auxiliary power source.
System Integration Features
The HFA3500TF is designed for deployment in multi-unit system configurations with comprehensive built-in integration capabilities:
- Parallel operation and N+1 redundancy operation supported, enabling scalable system power and high-availability configurations without external combining hardware
- Built-in ORing MOSFET eliminates the need for external diodes in redundant supply arrangements
- Built-in alarm output for system-level fault monitoring and remote indication
- Remote On/Off function available as an option (positive logic control)
- Optional MODBUS interface (I4 option) for digital communication and monitoring within industrial control networks
- Low leakage current option (G option) available for installations with earth leakage constraints
- SEMI F47 compliance for voltage sag immunity in semiconductor manufacturing equipment
Operating Conditions and Safety Approvals
The HFA3500TF operates across an ambient temperature range of -10 °C to +70 °C at 20–90% relative humidity (non-condensing), with forced cooling provided by an internal fan.
Safety approvals cover UL 62368-1, C-UL (equivalent to CAN/CSA-C22.2 No. 62368-1), and EN 62368-1, providing the certification basis for deployment in industrial, IT, and audio/video equipment across North American and European markets.
Target Applications
The combination of 3,500 W output, three-phase full-range input, 1U rack format, parallel and redundancy capability, and SEMI F47 compliance makes the HFA3500TF well suited for:
- Semiconductor manufacturing and process equipment
- Industrial automation and factory infrastructure
- Laser systems and high-power test equipment
- Data centre and telecommunications infrastructure
- Broadcast and professional AV systems requiring high DC bus power
- Renewable energy and energy storage system integration
FORTEC Switzerland supports your project from initial product evaluation through to series procurement. Our team advises on output voltage selection, redundancy configuration, MODBUS integration, and system-level installation requirements to help you identify and deploy the right COSEL solution for your application.
