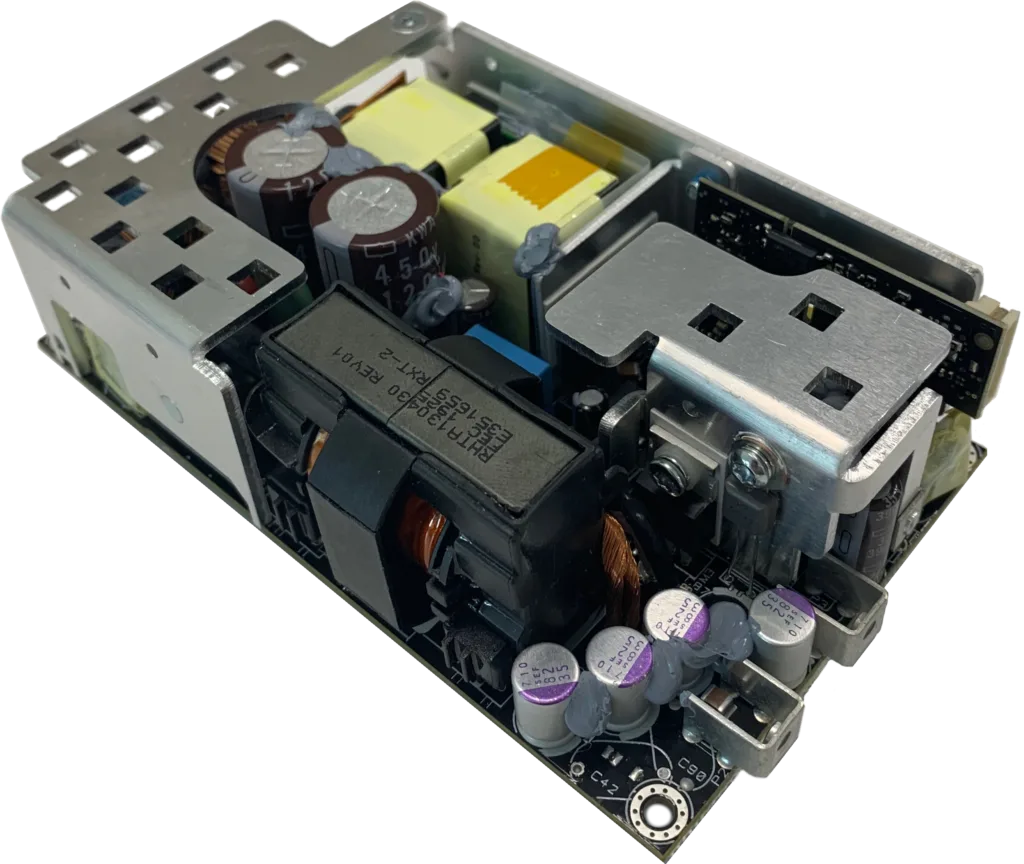

Inission Power DDP520 - 460 W Open Frame AC/DC Power Supply
High Efficiency Across a Wide Output Voltage Range in a Compact 3" × 5" × 1.5" Package
Open frame power supplies for LED lighting, video wall displays, entertainment systems, and industrial applications need to deliver high output power reliably across a wide range of ambient conditions - while fitting within compact enclosures where height and footprint constraints are tight.
The Inission Power DDP520 meets these requirements in a 3.0" × 5.0" × 1.5" (76.2 × 127 × 38.5 mm) open frame package. Delivering 460 W with forced-air cooling and a sustained 340 W under natural convection, it achieves up to 95.5% efficiency across its output voltage range and covers a wide -40 °C to +70 °C ambient temperature operating range. A universal AC input spanning 90–305 V AC covers all global mains voltages, including industrial 277 V single-phase supplies, without any input switching or reconfiguration.
Designed for LED Lighting, Industrial, and AV Applications
The DDP520 is suited for use in a broad range of power-intensive, space-constrained system environments, including:
- Entertainment lighting: LED moving heads, spots, and strobes
- Architectural and stage lighting systems
- Video wall displays and LED installations
- Industrial laser applications and 3D printing equipment
- Automated teller machines (ATMs)
- Industrial control and automation systems
Technical Characteristics
The DDP520 is engineered to deliver high output power with comprehensive environmental and compliance coverage:
- Output power: 460 W rated with forced-air cooling; 340 W with natural convection
- Universal AC input voltage range: 90-305 V AC
- Standard output voltages: 24 V, 48 V, and 56 V DC
- +5 V / 1 A standby output for system control and low-power standby functions
- Efficiency up to 94.5% (24 V model) and up to 95.5% (48 V and 56 V models)
- Low earth leakage current below 250 µA
- Active Power Factor Correction (PFC) compliant with EN 61000-3-2 Class C above 20% load
- Power Good, Remote On/Off, and Remote Sense terminal controls for system-level power management
- Operating temperature range: -40 °C to +70 °C with derating above 50 °C; cold start from -20 °C on standard models
- Altitude operation up to 5,000 m (24 V, 48 V, 56 V models); up to 4,000 m (36 V model)
- EN 55032 Class B conducted and Class A radiated EMC compliance
- IEC/EN 61000-3 harmonic content compliance
- EN 55024 and EN 61000-6-2 EMC immunity
- Certified to IEC/EN/UL 62368-1 (2nd edition) for IT/industrial and audio/video equipment
- Compatible with UL 8750 for LED lighting applications
- Compatible with IEC 60335-1 / IEC 61558-1 for household appliance safety standards
- RoHS 3 compliant (EU Directive 2015/863)
- CE marked, UL Recognition
Wide Output Voltage Range for Maximum Application Flexibility
The availability of 24 V, 36 V, 48 V, and 56 V output variants within a single mechanical platform gives the DDP520 a practical versatility across different system architectures. LED lighting designs increasingly favour 48 V and 56 V DC bus voltages for their efficiency advantages over 24 V distribution at high power levels, while industrial and ATM applications often require 24 V or 36 V. By covering all four common output voltages within one form factor, the DDP520 allows system designers and procurement teams to standardise on a single open frame platform across multiple product lines.
The combination of Power Good signalling, Remote On/Off control, and Remote Sense compensation further supports integration into systems with distributed load points or where precise output voltage at the load terminal is required regardless of cable resistance.
FORTEC Switzerland supports you in selecting the right DDP520 configuration for your application – from initial evaluation through to project-specific procurement and long-term series supply.
