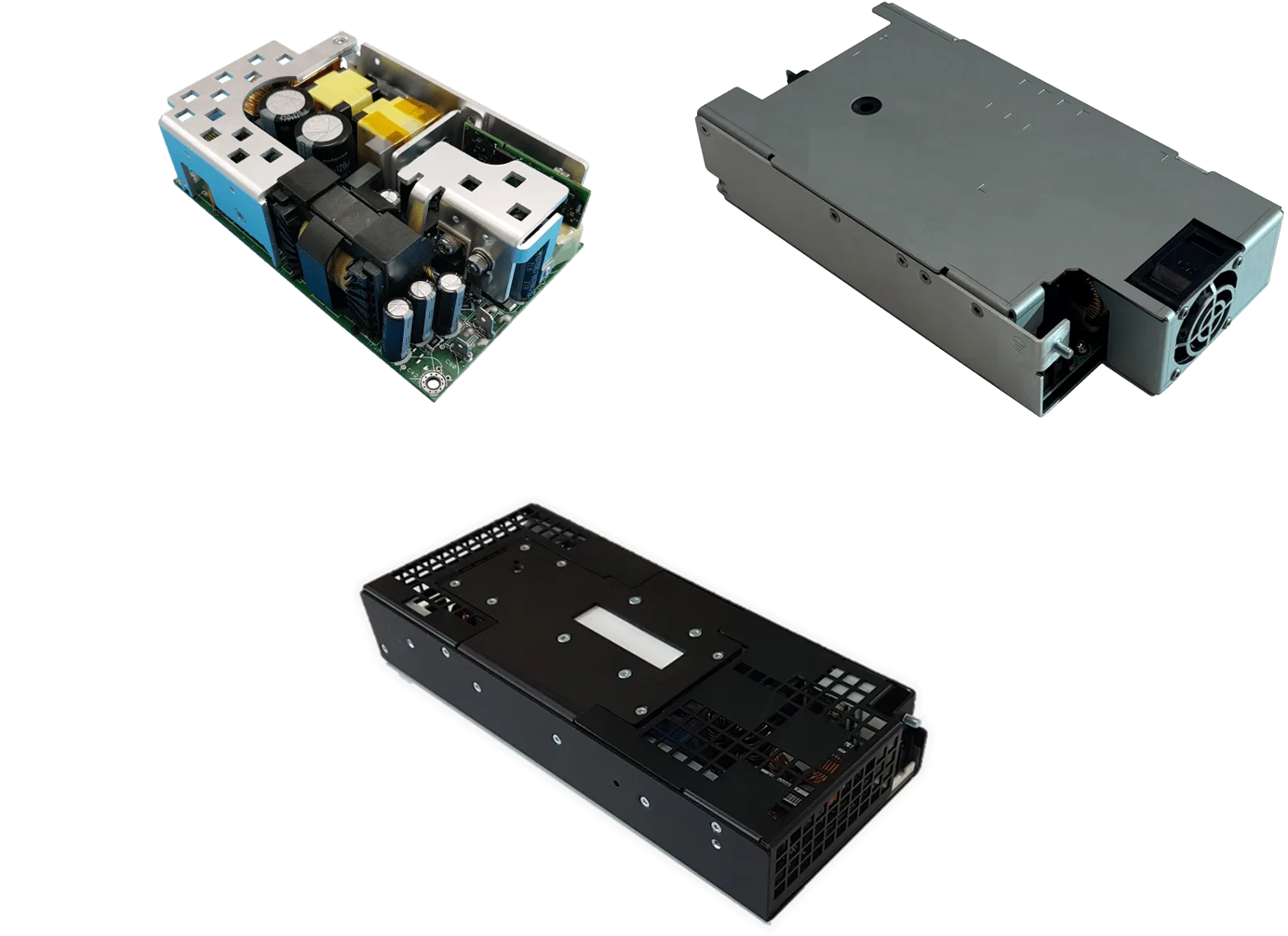

Inission Power AC/DC Power Supplies Robust and Efficient Power Solutions for Industrial and Demanding Environments
FORTEC Switzerland offers the full range of Inission Power AC/DC power supplies - solutions built for high reliability, compact form factors, and compliance with international safety standards. Whether you need a sealed unit for outdoor use, a high-power supply for industrial infrastructure, or a space-saving design for tight enclosures, Inission Power's portfolio covers a wide spectrum of requirements.
Key Features
- Wide Power Range: rom 60 W up to 1,200 W, covering everything from compact control systems to high-demand infrastructure applications. High Efficiency: Up to 97% efficiency in selected series, minimising energy losses and thermal load.
- High Efficiency: Up to 97% efficiency in selected series, minimising energy losses and thermal load.
- Global Safety Compliance: Products certified to international standards including IEC/EN 62368-1 and UL 8750.
- Versatile Form Factors: Open-frame, U-chassis, sealed, perforated cover, front-fan, top-fan, DIN rail, and semi-potted configurations available.
- Advanced Features: Selected series offer PMBus™ communication, digital signal processing (DSP), auxiliary outputs, and convection or forced-air cooling options.
Product Categories
SFA160 Series
LPD200 Series
LPD300 Series
DDP400 Series
A versatile 400 W platform (440 W peak) available in multiple mechanical configurations to match a broad range of installation requirements:
- Open Frame - 12, 24, 36, 48 VDC
- U-Chassis - 12, 24, 28, 36, 48 VDC
- Perforated Cover - 12, 24, 36, 48 VDC
- Front Fan - 12, 24, 36, 48 VDC
- Top Fan - 12, 24, 36, 48 VDC
- Sealed - 12, 24, 36, 48 VDC
- DDP400-US24-SC-2 - 400 W (440 W peak), 24 V standard output
SLP420 Series
420 W rated power supply (330 W with natural convection), with a 48 VDC standard output. Designed for applications where quiet, fanless operation is preferred.
DDP520 Series
Open-frame power supply rated at 460 W (340 W free-air cooled), available in 24, 48, and 56 VDC output variants. Suited for telecom and infrastructure applications.
DDP600 Series
600 W continuous power (800 W peak for up to 10 seconds), offered in three mechanical variants:
- SC Sealed - 24 and 48 VDC; (-S) versions include a +5 V / 1.5 A standby output
- Front Fan - 24, 28, 36, 48 VDC
- U-Chassis - 24, 28, 36, 48 VDC
HDP1200 FF Series
1,200 W front-fan power supply with a universal 90-305 VAC input range, available in 24 and 48 VDC standard outputs. Designed for demanding applications requiring a wide input tolerance and high output power.
DDP1200 Series
High-power 1,200 W solutions in multiple forced-air and free-air cooled configurations:
- DDP1200-FF (Front Fan) - 24 and 48 VDC
- DDP1200-PCF (Perforated Cover, Forced-Air) - 24 VDC
- DDP1200-UCF (U-Chassis, Forced-Air) - 24 VDC
- DDP1200-PC (Perforated Cover, Free-Air) - 750 W rated; 24 and 48 VDC
- DDP1200-UC (U-Chassis, Free-Air) - 750 W rated; 24 and 48 VDC
Selected DDP1200 variants are equipped with DSP and PMBus™ for advanced monitoring and control, making them suitable for IT infrastructure, industrial, and LED lighting installations.
ADC4370 Battery Chargers and Power Supplies
800 W output power modules doubling as power supplies or battery chargers. Available in 12, 24, 36, 48, 72, and 96 VDC standard output variants - suitable for backup power and energy storage applications.
ADC5000 DIN Rail/Wall-Mount Power Supplies
60 to 250 W output range in a compact DIN rail or wall-mount form factor, with 12, 24, 36, and 48 VDC output options. Designed for industrial control cabinets and building automation.
MHE High Efficiency Rectifiers for OPUS Power Systems
Fanless rectifiers with convection cooling and efficiency up to 97%. Available from 24 VDC to 220 VDC, with individual modules rated at 2 kW and system-level configurations scalable up to 80 kW. Designed for use within OPUS power systems in utility and infrastructure environments.
Applications
- Industrial Automation: Dependable power for control systems, PLCs, robotics, and machinery.
- Telecommunications: Reliable supplies for network equipment, base stations, and data infrastructure.
- LED Lighting: Efficient power conversion for large-scale indoor and outdoor lighting installations.
-
Utility and Energy: High-efficiency rectifiers and battery charger modules for backup and energy storage systems.
- Harsh Environments: Sealed, semi-potted, and IP-rated units for outdoor, mobile, and mission-critical deployments.
Why Choose Inission Power?
- Proven Reliability: Inission Power products are built for long service life and deployed in demanding applications across multiple industries.
- Purpose-Built for Tough Conditions: Sealed, semi-potted, and convection-cooled designs handle moisture, vibration, and temperature extremes.
- Intelligent Power Management: PMBus™ and DSP integration enable real-time monitoring and precise output control in complex systems.
- Flexible Integration: Multiple form factors and cooling methods simplify installation in tight enclosures and thermally constrained environments.
- Standards Compliance: Products are validated against current global electrical safety and EMC requirements.
FORTEC Switzerland supports you in identifying the right AC/DC power supply for your application - from initial technical consultation through to project-specific selection and procurement.
